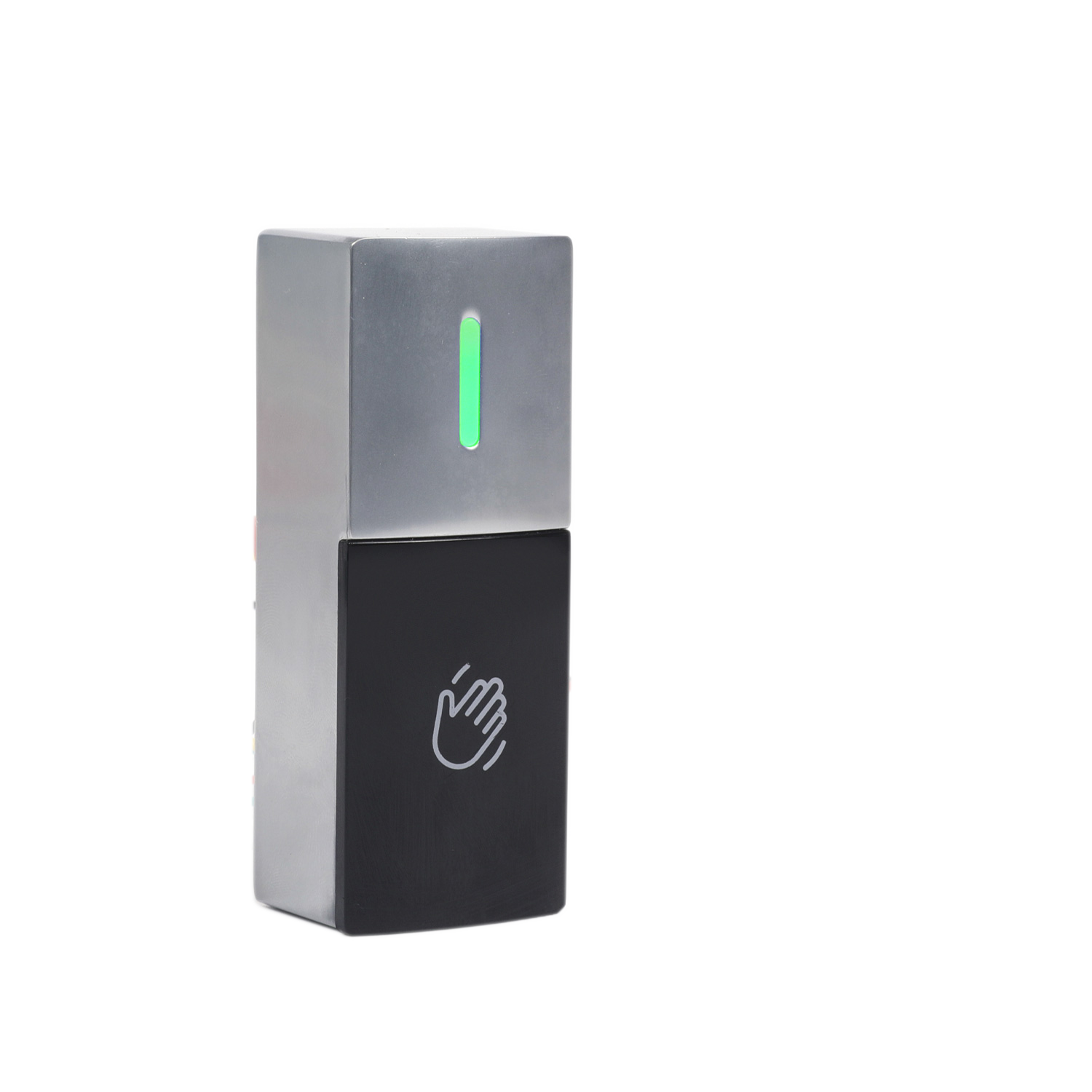

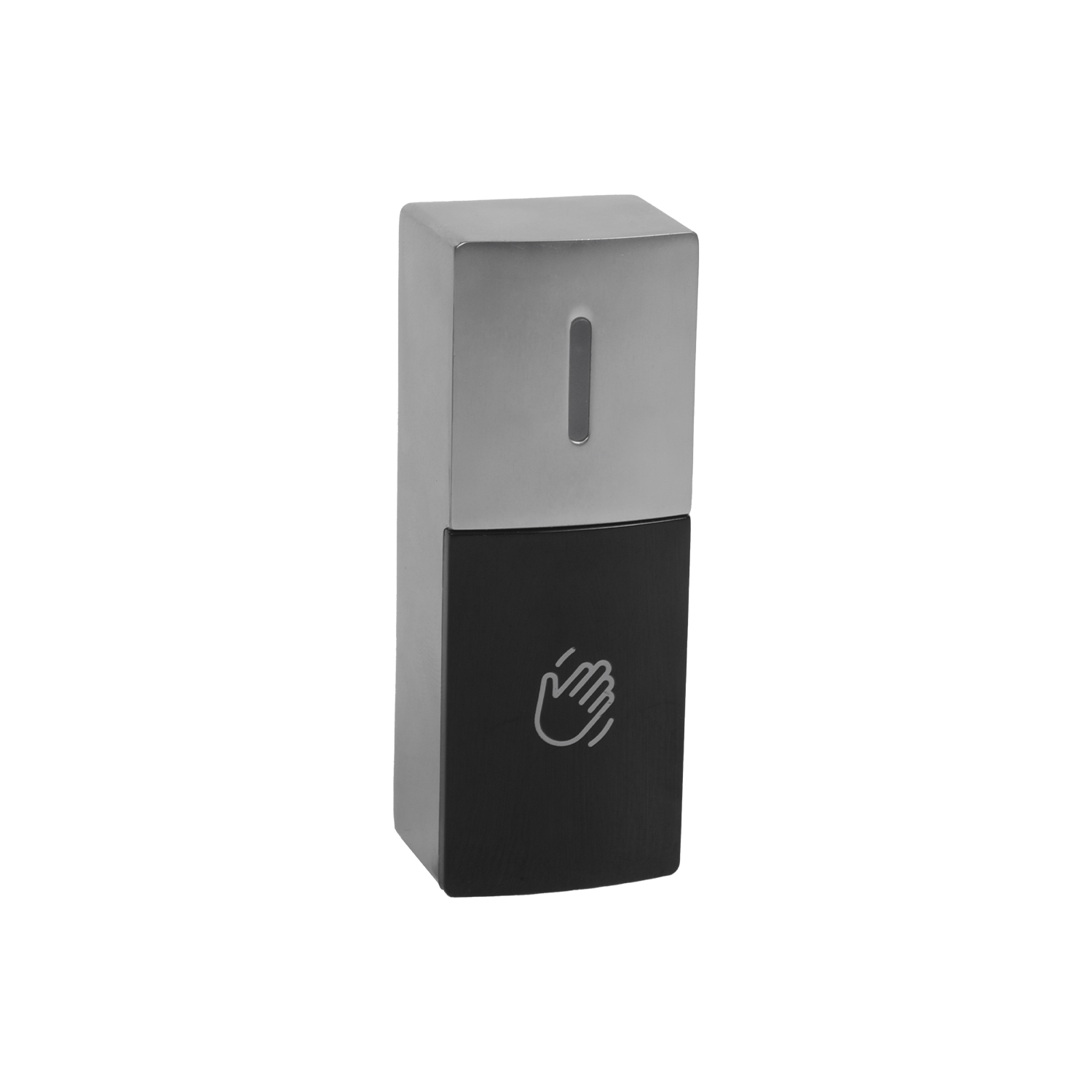

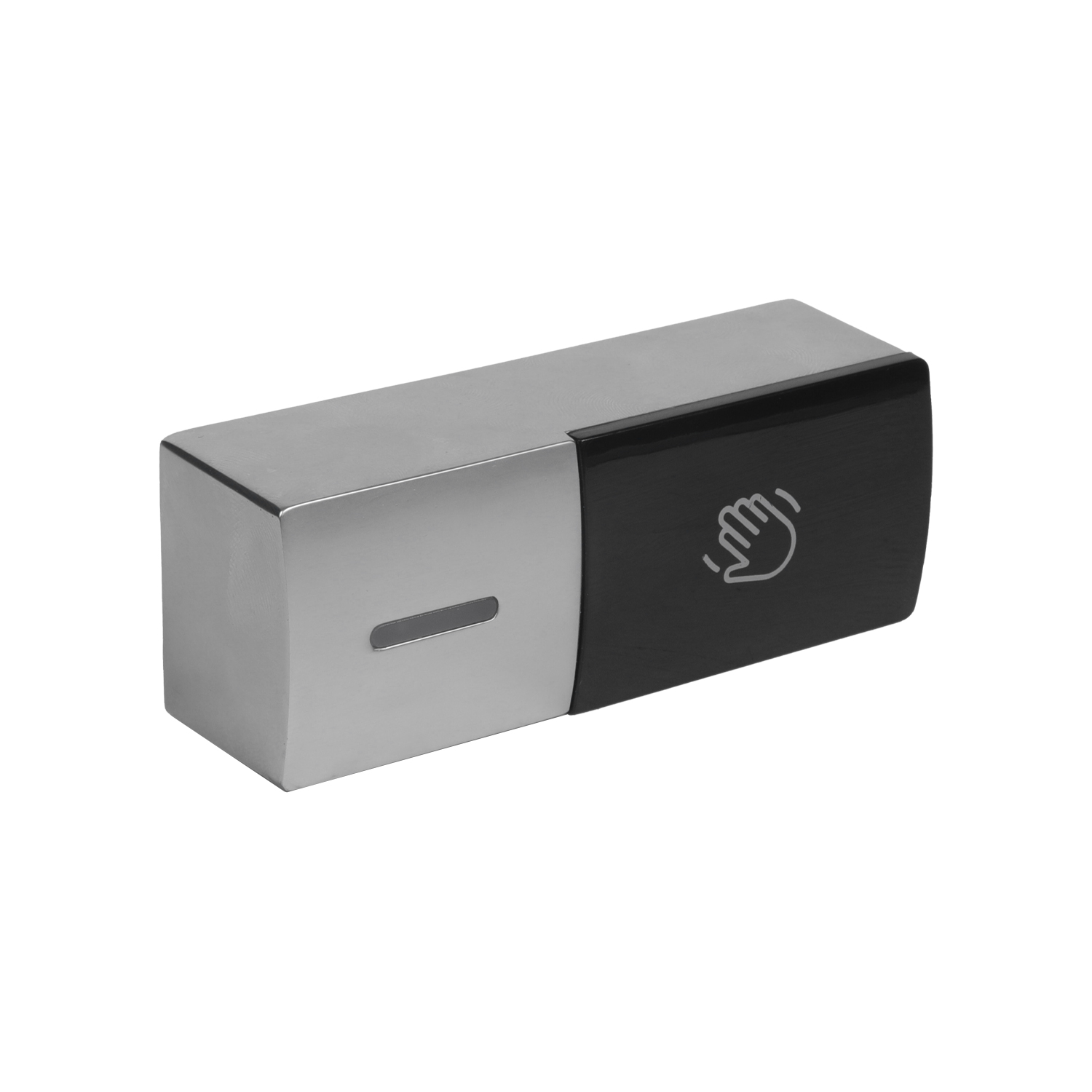

Touchless Sensor Exit Button Introduction
Touchless Sensor Exit Button is a new type of electronic equipment used to control the opening and closing of doors, gates, elevators and other entrances and exits. Its working principle is through the induction technology, when a person is close to the button, no need to touch to automatically recognize and trigger the switch action. Non-contact induction exit button is mainly composed of two parts: sensor and controller.
Working Principle
Touchless Sensor Exit Button is a safe and practical device that is widely used in a variety of locations, such as shopping malls, hospitals, and office buildings. It uses infrared or other wireless technology to allow people to operate the button without direct contact, thus reducing the risk of spreading germs through contact.
| Power | DC12-24V |
| Output Contact | NO/NC/COM |
| Sensitive Distance | 5-20cm(Adjustable) |
| LED Indicator | Blue LED (Standby)、Green LED (Active) |
| Time Delay | 0-30s(Adjustable) |
| Material | Zinc Alloy |
| Operating Temp | -20℃~+55℃ |
| Operating Humidity | 0-95%(Relative humidity) |
| Waterproof | IP68 |
| Mechanical Life | 500,000 Tested |
| Mounting Way | Surface Mount |
| Weight | 0.186kg |
