EXTERNAL ROTATION WIRELESS INFRARED BEAM SENSOR
EXTERNAL ROTATION WIRELESS INFRARED BEAM SENSOR

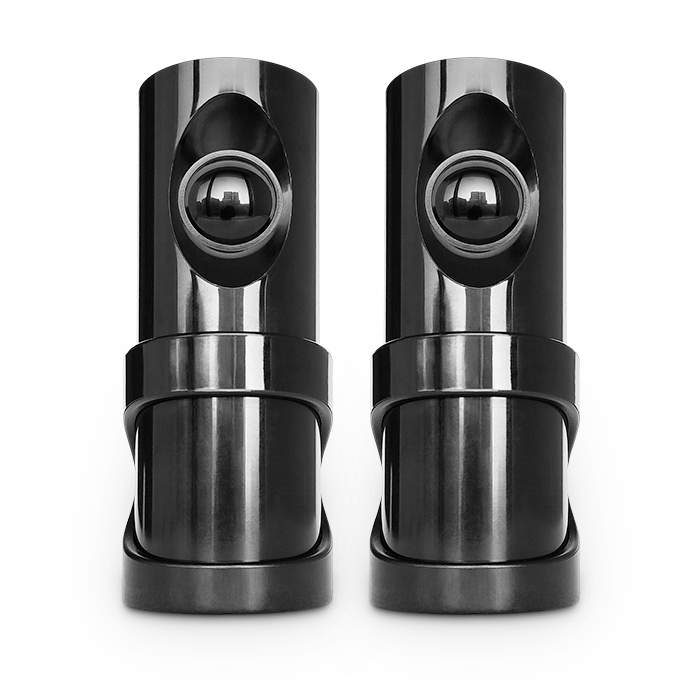

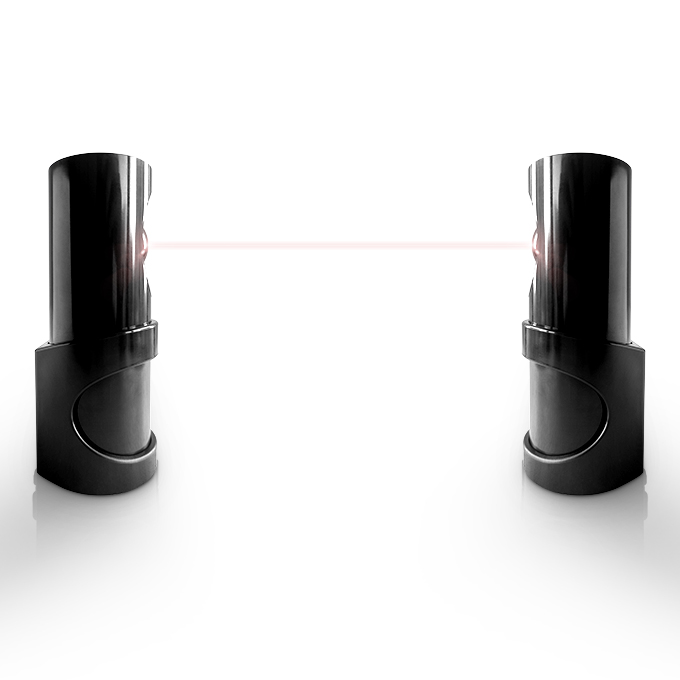

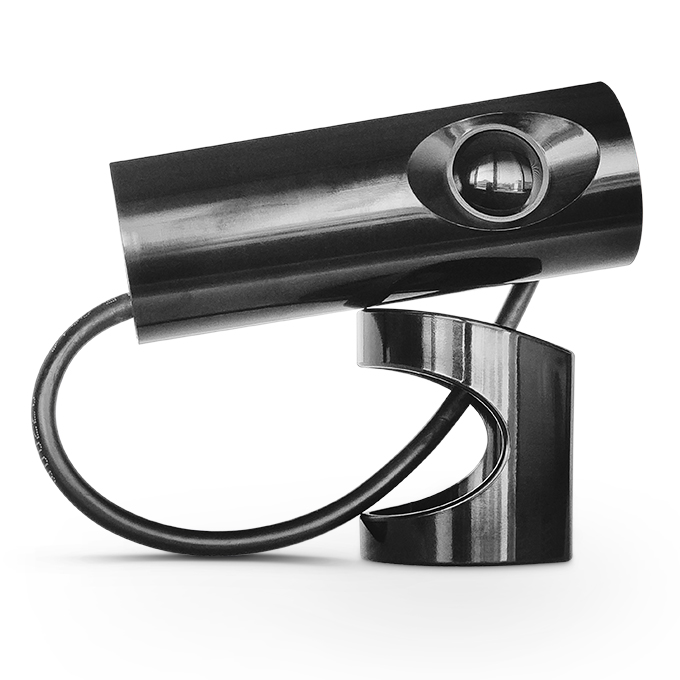

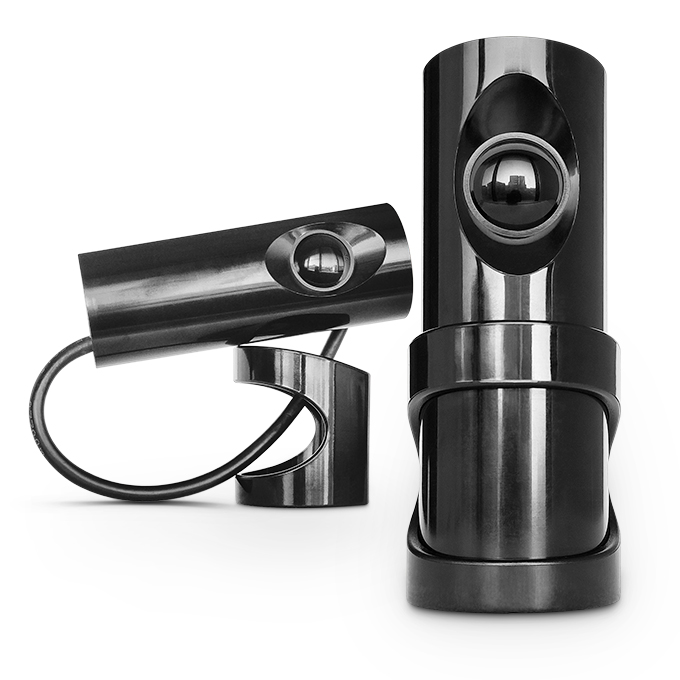

IS-30R external rotation infrared gate safety beam with a wireless transmitter and there’s no need to tunnel under the driveway, With external rotation 180 degree, Simply rotational align, More convenient and safe for door automation!
Two Pair photocell Anti-minimum interference distance
The minimum distance is 50cm if the RX and Tx of 2 pair photo sensor with 10m detection distance.
IS-30R External Rotation Infrared Safety Beam Specification
| Power Supply Transmitter | AA x 2 Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product |
| Receiver | 12 – 24V AC 12 – 30V DC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic – 1m² @ 10m (circular area – assumes parallelsurface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C – +60°C |
| Operating Humidity | 0 – 90° Non-condensing |
| Degree of Protection | IP66 |
| Housing Material | PC(UV) |
| Size | 113*46.79*47.72mm |
