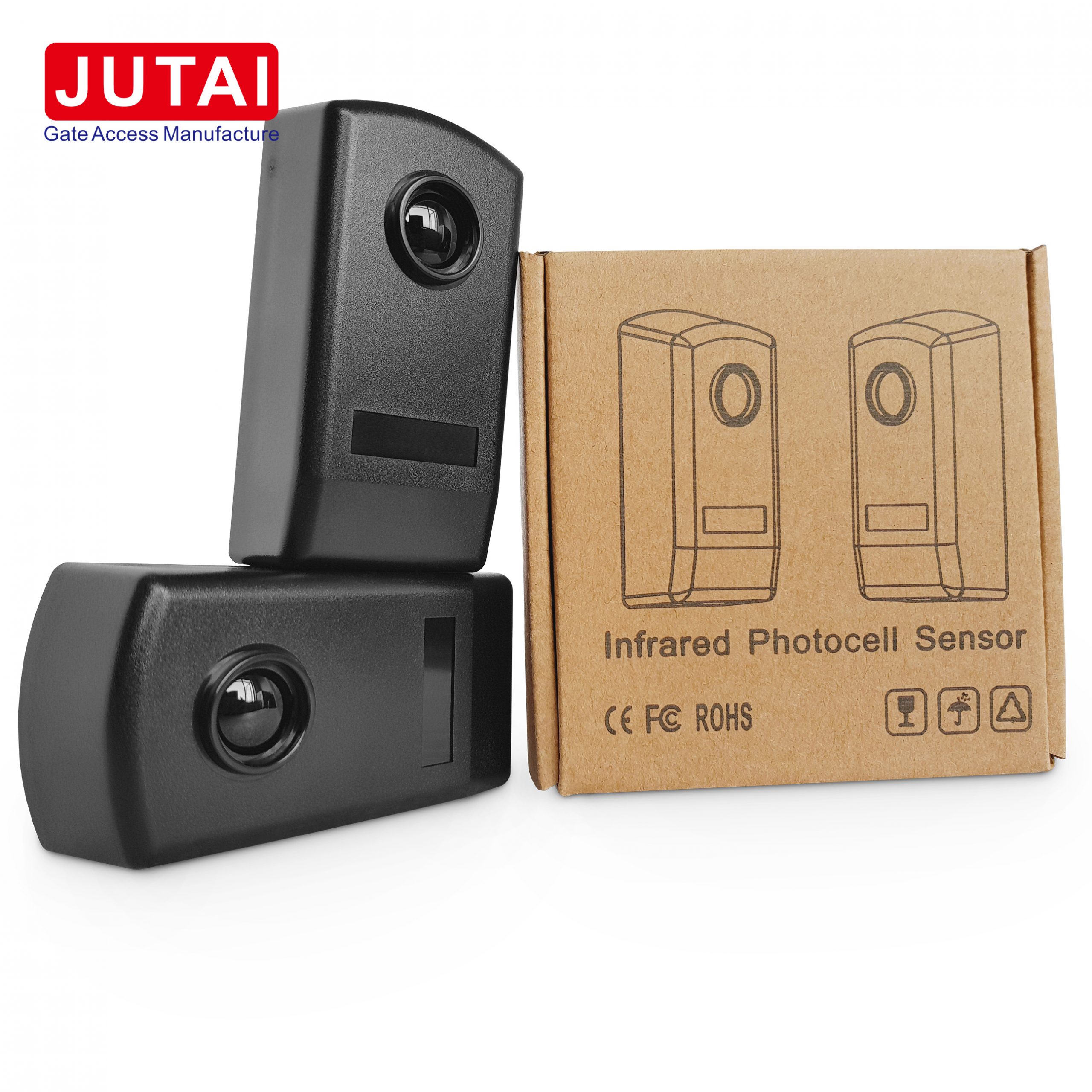

Photoelectric beam sensor 1-20M infrared gate sensors
1.Single beam sensor/single beam detector is used for automatic slide door, shutter door , garage door windows etc.

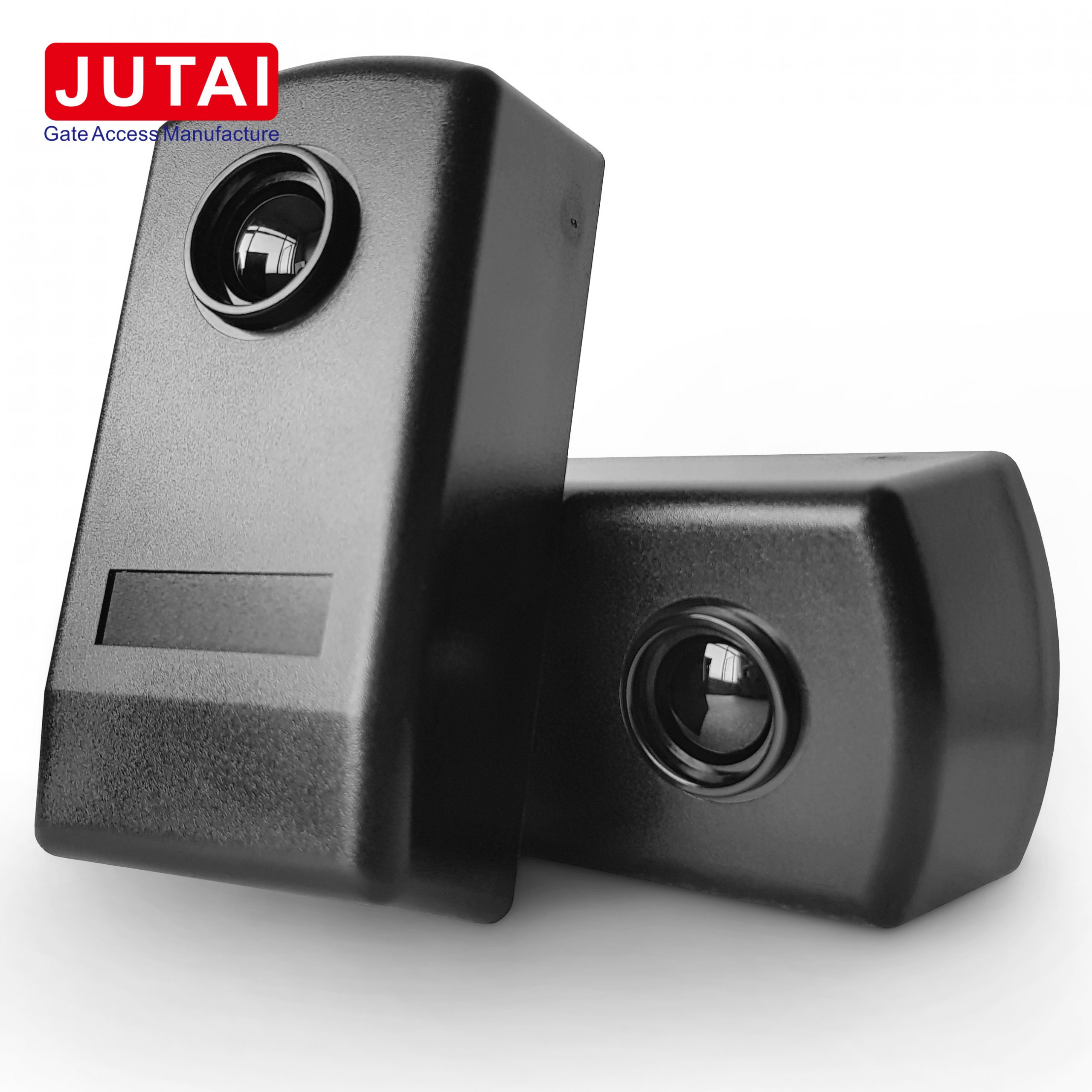

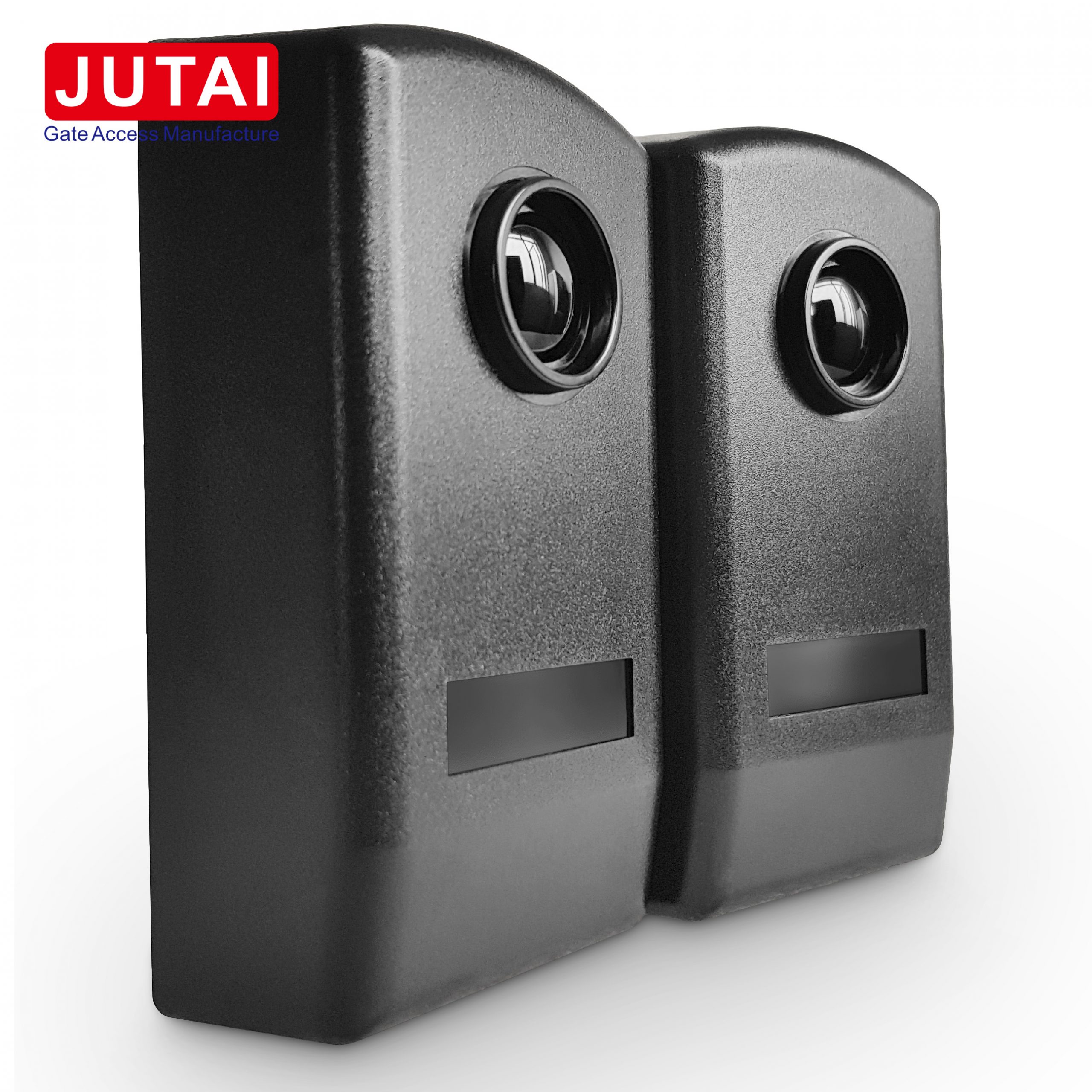

2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.Narrow infrared beam (I or II) can avoid interruption by external light.
3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(2-20meters).
4. The IR-20 provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
|Max.Range up||20Meters(indoor or outdoor)|
|Max.TX working current||25mA|
|Max. RX working current||35mA|
|Max. Relay contact||Max 500mA e 48Vac/dc|
|IP rate||IP65 with rubber|
