JTPR-32TM Dual Frequency RFID Card Reader Standalone

Product Details:

Serial Number: JTPR-32TM
Country of Origin:shenzhen, China
Certificate:CE, FC

Payment & Shipping Terms:

Price Quote:negotiate
Minimum Order: 1 set
Average Delivery Time:sample order 2-3 days, normal order 5-10 days
Payment Method:T/T, Western Union, PayPal

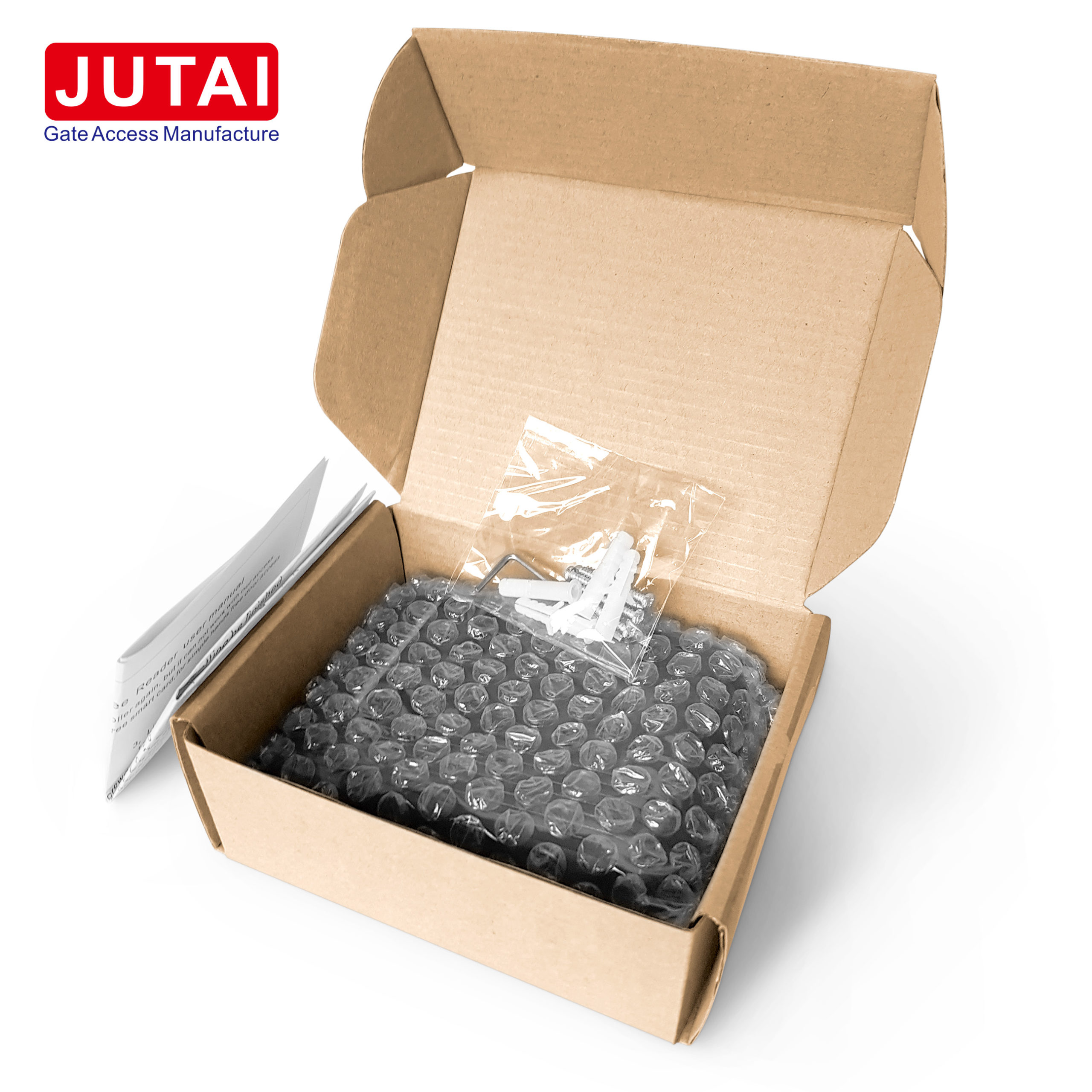

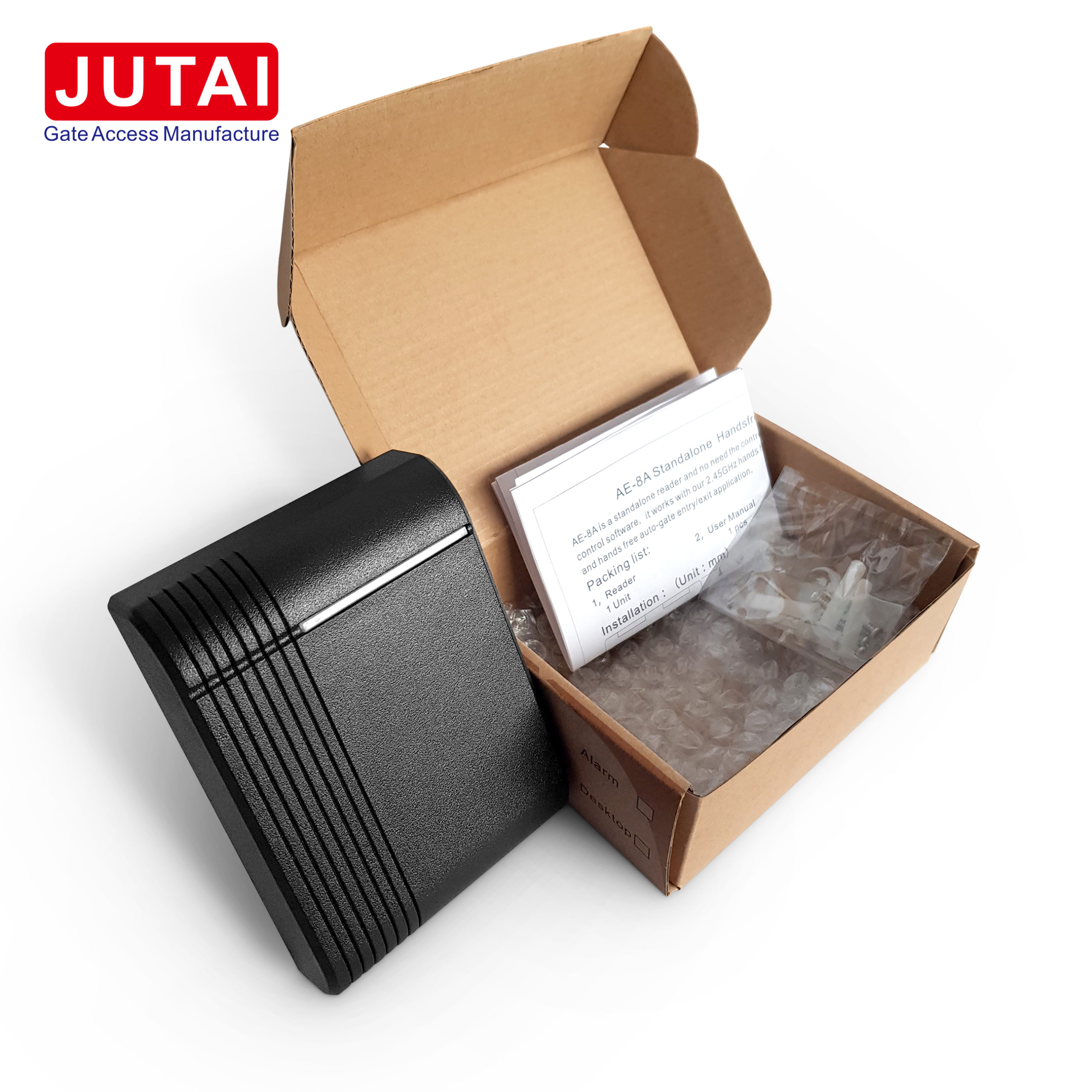

Package Details:1pcs per box
Ability to Supply:5000 set/sets per month JTPR-32TM long range reader

TPR-32TM Dual Frequency RFID Card ReaderCan Connect the Software Directly By TCP/IP

Standalone rfid reader can save 1000 users and connect the software directly by TCP/IP. Don’t need to connect  door access controller . Using for autogate system to open the slide gate motor and swing gate motor. Long range active RFID reader is more safety for your house. welcome to wholesale newest, low price and high-quality 4m standalone reader rfid active reader from us.

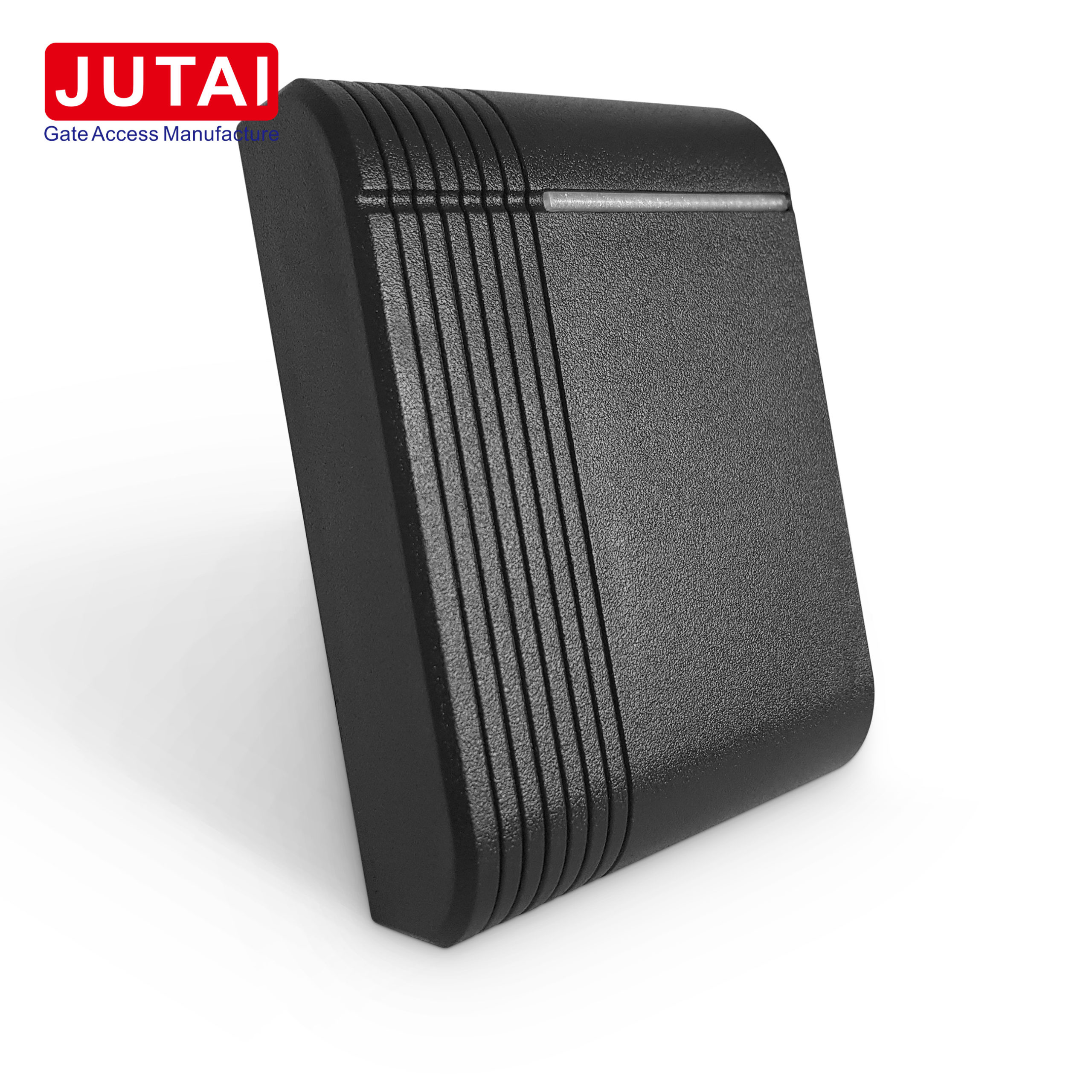

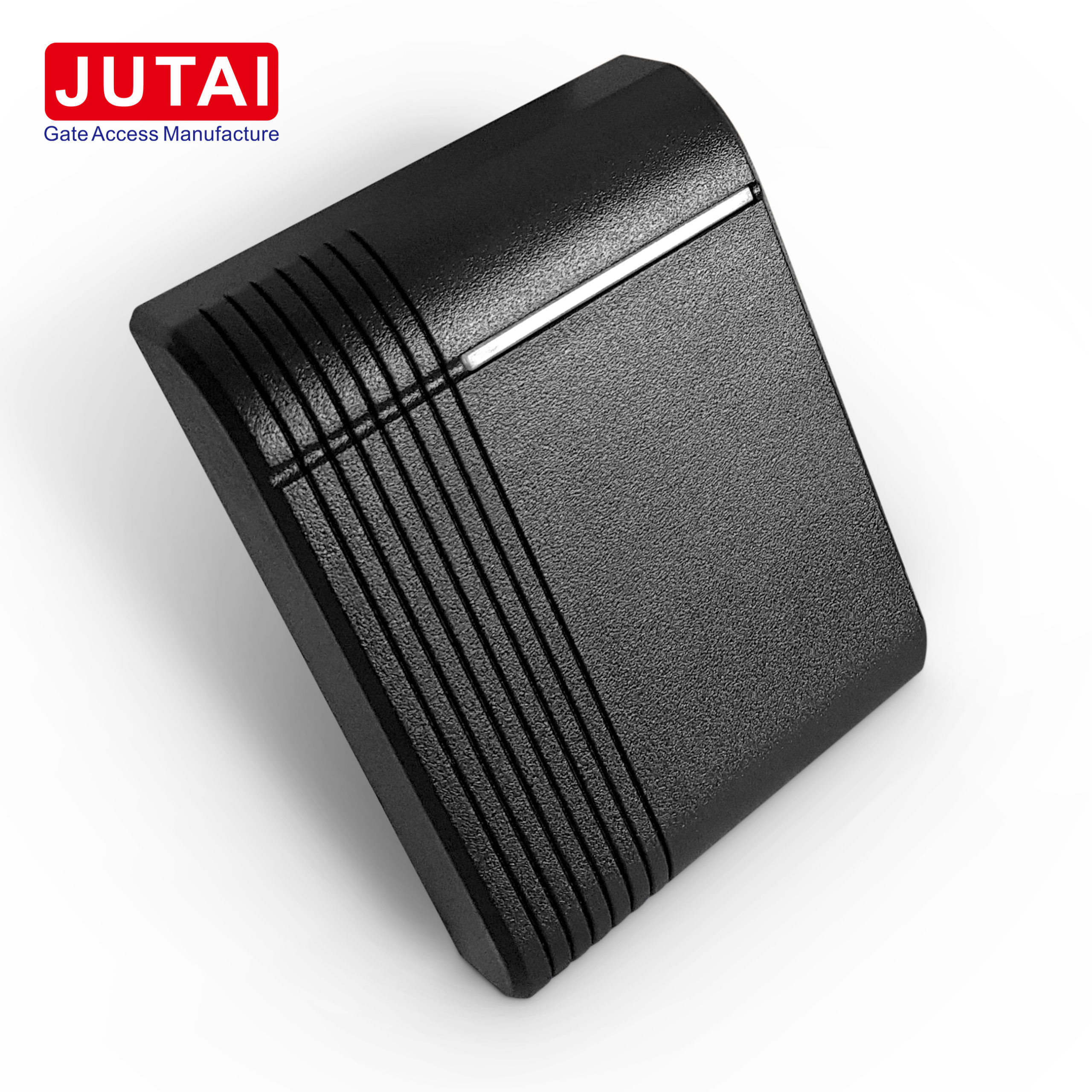

JTPR-32TM Dual Frequency RFID Card Reader

JTPR-32TM Dual Frequency RFID Card Reader Introduction

  1. Dual Frequency working: 2.45Ghz&13.56Mhz, which can work with our active card and Mifare card
  2. Standalone RFID reader can connect the software directly by TCP/IP.
  3. Built-in Two door controller, suit to one entrance and one exit parking system
  4. With large storage capacity,support 26,000 users and 100,000 memory records
  5. Installation inside of the Gooseneck


JTPR-32TM Dual Frequency RFID Card Reader Technology Parameter

  • Power Supply: DC12V/2A
  • Work Current: ≤185mA
  • Baud Rate: 9600,n,8,1
  • Work Frequency: 2.45Ghz & 13.56Mhz
  • Operating Temp: -20℃~+85℃
  • Relative Humidity: ≤90%
  • Long Range Distance: 12m-15m(in the air)
  • Short Range Distance: 4-5CM
  • Interface: Wiegand,RS485
  • Relay Load Capacity: AC125V0.5A  DC30V1A  DC60V0.3A
  • Copper Core Load Capacity: 1.36A

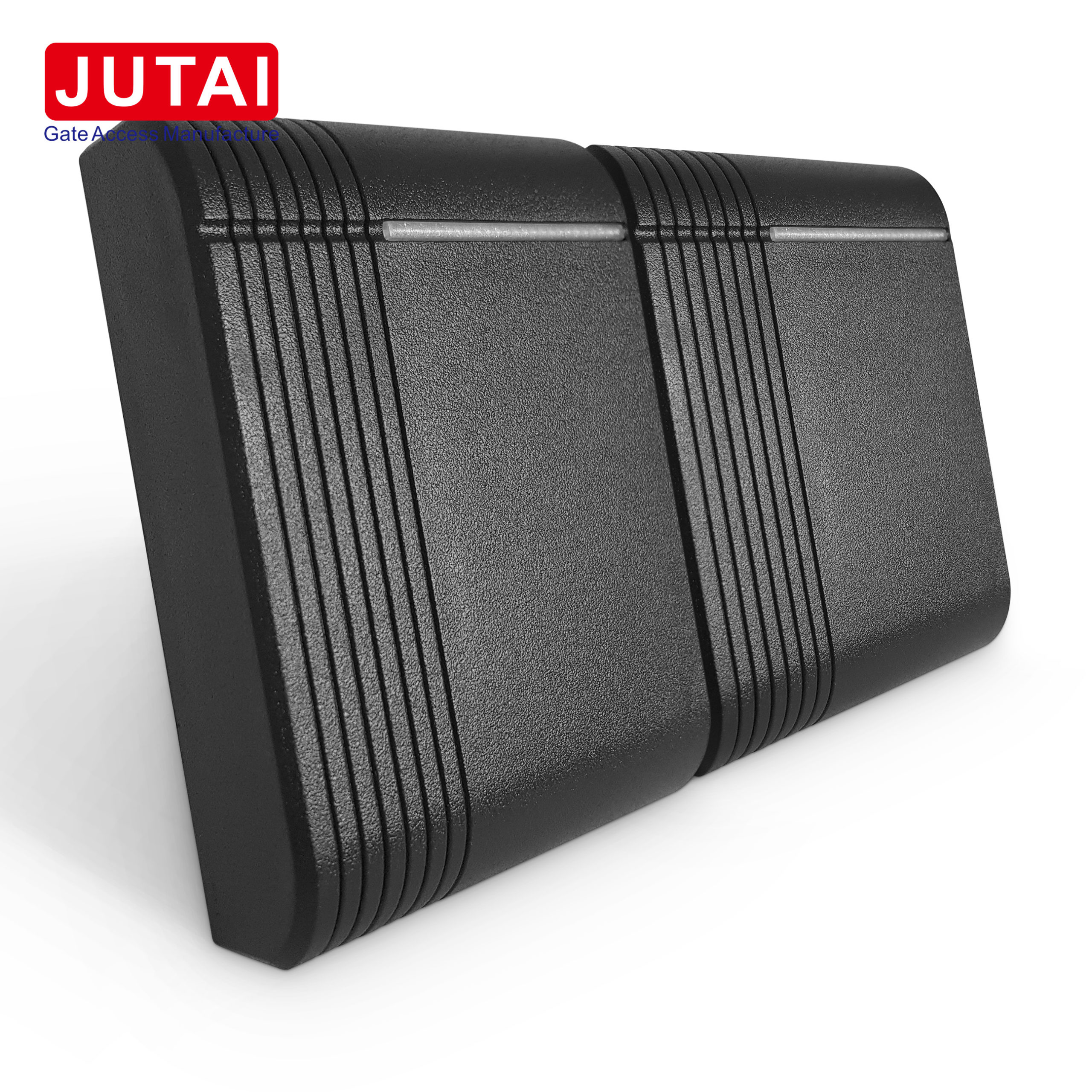

  • JTPR-32TM and JTPR-32S long range readers for car park one entrance and one exit.

JTPR-32TM Dual Frequency RFID Card Reader

JTPR-32TM Dual Frequency RFID Card Reader


Hands-Free Long Range Parking Access Control System

Automatic Gate Entrance Access Control System

Long Range Rfid Gate Entrance Reading System

Intelligent Parking Management System;

All-in-one Card Access Control System;

Non-stop Vehicle Counting System;

Non-stop Bus Attendance System;

Electronic Road Driving Test System,etc.


JUTAI provides passive hands-free parking solution, like the integration of UHF long range reader using UHF RFID technology; JUTAI long distance UHF passive RFID reader is targetd for low-budget car access control system solution. This solution is mainly used in long range parking system, JUTAI parking control board and parking access control software is available for its customers to use. This solution is mainly used in hands-free parking driveway gate solution which is very easy and convenient for the users to use. It is a total hand free and time-saving solution for customers.

915Mhz UHF Passive Long Range RFID Card Reader Automatic Barrier is an ultra-high-frequency long range Wiegand reader read up to 7 meters (free air reading) depends on the interference on site and proper card reading angle. It is an Ideals for access control tracking system, car parking reader system. JUTAI UHF long range reader is complete with mounting bracket and power supply, housing made of PET material which is weatherproof against sunshine and rain.



1. Can we try the sample order first?

Yes, we can offer even 1 pc for testing.

2. What is lead time if we place an order?
If we have the order in stock, it would be 2 working days.
If we don’t have the order in stock, it would be 7-20 days.

3. How to make payment?
T/T, Paypal, Western Union, L/C is acceptable.

4. What is the delivery way?
DHL, UPS, Fedex, TNT ,EMS, DTDC etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport.
For mass order, shipping by sea or by air transport will be good choice.

5. What’s the after-sale service?
We will provide the after-sale service by e-mail, skype, whatsapp, trade manager, telephone, QQ and wechat etc if you need any assistance from us after receiving the order.


JTPR-32TM Dual Frequency RFID Card Reader/Dual Frequency RFID Card Reader/RFID Card Reader/Card Reader/ JUTAI
