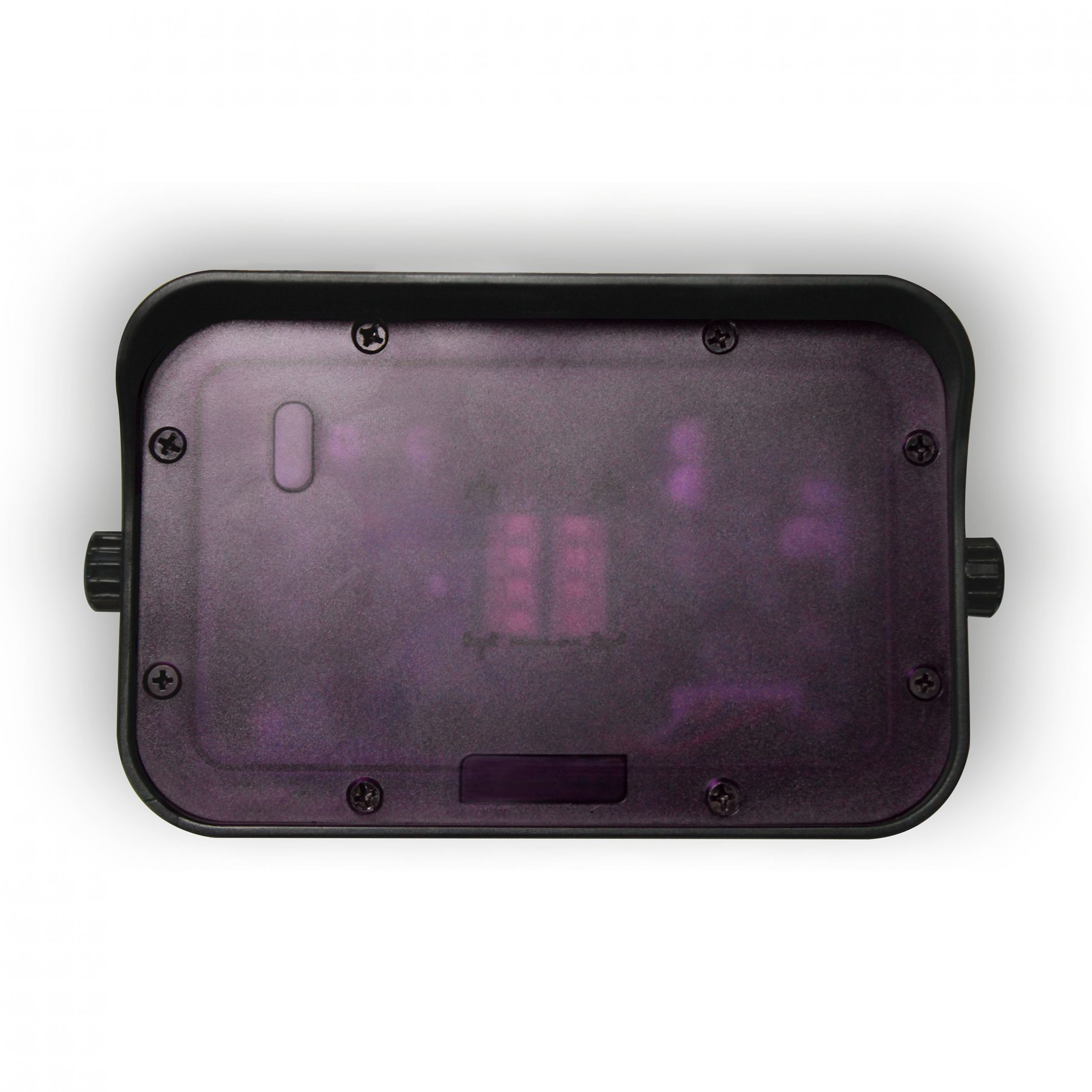

RVP42-9BW Industrial Door Sensor

lntroduction

RVP42-9BW is a high-performance motion radar detector forvehicle detection and human detection, specilly developed forindustial doors, garage doors, cold storage doors, road gates and other industie.lt is with dual relays of vehicle-detection and pedestrian-detection, and can slso open the corresponding relay output as needed. Meanwhile, RVP42-9BW has a recognition and filter function for horizontally moving vehicles or pedestrians.

Application

The application of motion radar sensors in industrial doors is very extensive. When a person or vehicle approaches the door, the sensor can sense its movement and automatically open the door body. At the same time, the sensor can also be used for safety monitoring. When a person or object enters the monitoring range, an alarm signal will be sent to remind the Sysop to pay attention. The motion radar sensor can also be applied to lighting control to achieve intelligent lighting systems. When someone approaches, the sensor can sense their movement and trigger the light to light up through a signal. This application can improve energy efficiency and prevent lighting from wasting energy when there are no people present. In short, any scheme that detects object motion and outputs a signal can use it.

User’s Guide

RP42-9BW is a high-performance motion radar detector for vehicle detection and human detection,specilly developed for industial doors, garage doors,cold storage doors,road gates and other industie.lt is with dual relays of vehicle-detection and pedestrian-detection,and can slso open the corresponding relay output as needed.Meanwhile, RVP42-9BW has a recognition and filter function for horizontally moving vehicles or pedestrians.Support apps setting, you can use remote transimitter and mob apps to setting.the function.



Technical Data

Application technology Doppler radar
Transmission frequency 24.125GHz
Transmission power <20dBm
Detection height 2.0m~9.0m
Angle adjustment 0°-90°longitudinal
Detection speed 5cm/s ~ 25km/s
Detection area(30° Angle) 3.0m*3.5m@height: 2m,6.5m*8.5m@height: 9m
Operation voltage 12~36VADC
Operation current <100mA
Power frequency 50Hz
Temperature range -30 ℃ ~ + 60 ℃
Relative humidity 0% to 95%, no condensation
Protection grade IP65
Relay output 24VDC@1A 125VAC@0.5A
External dimensions 164mm x 111mm x 94.5mm
Cable length 7m
Sensor weight 650g

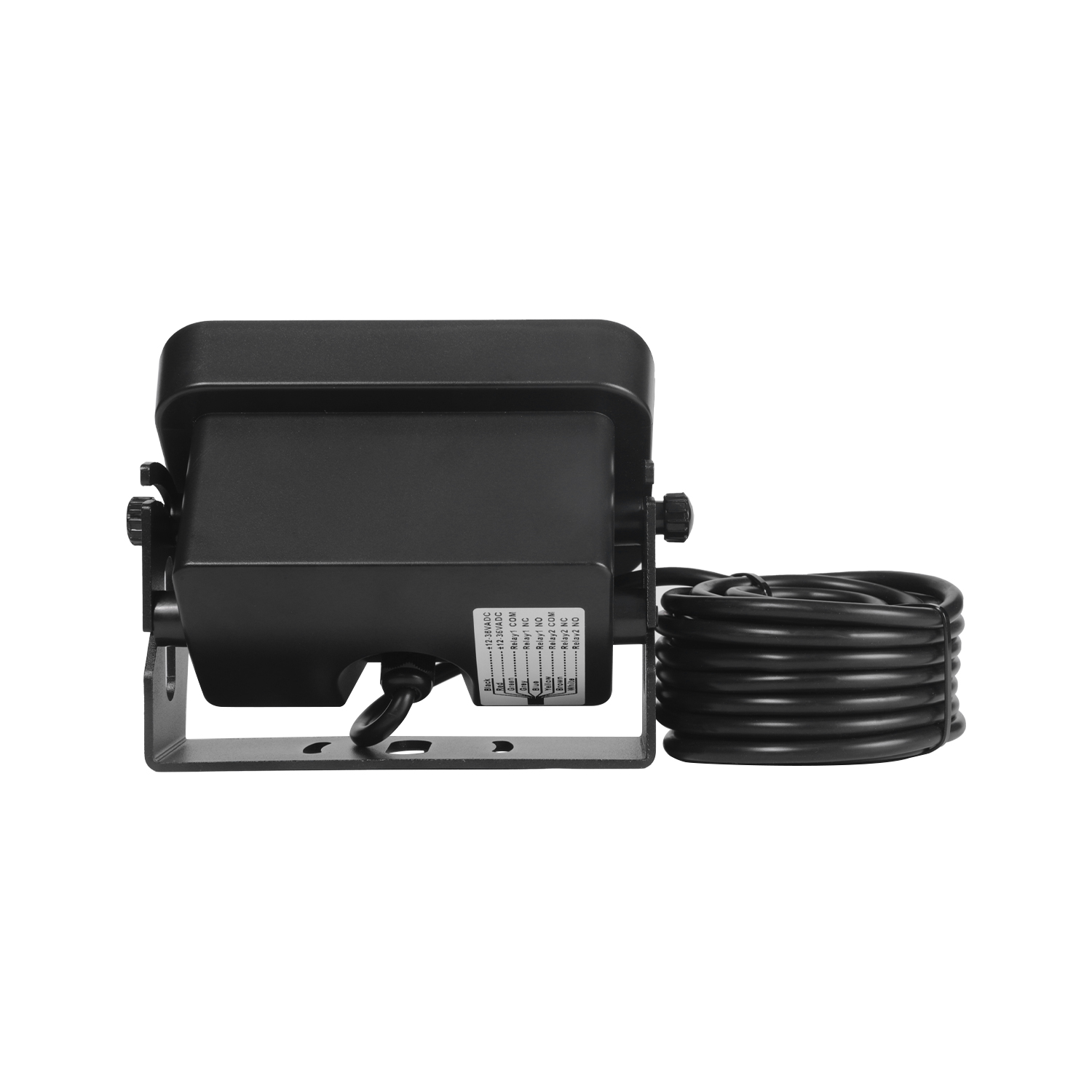

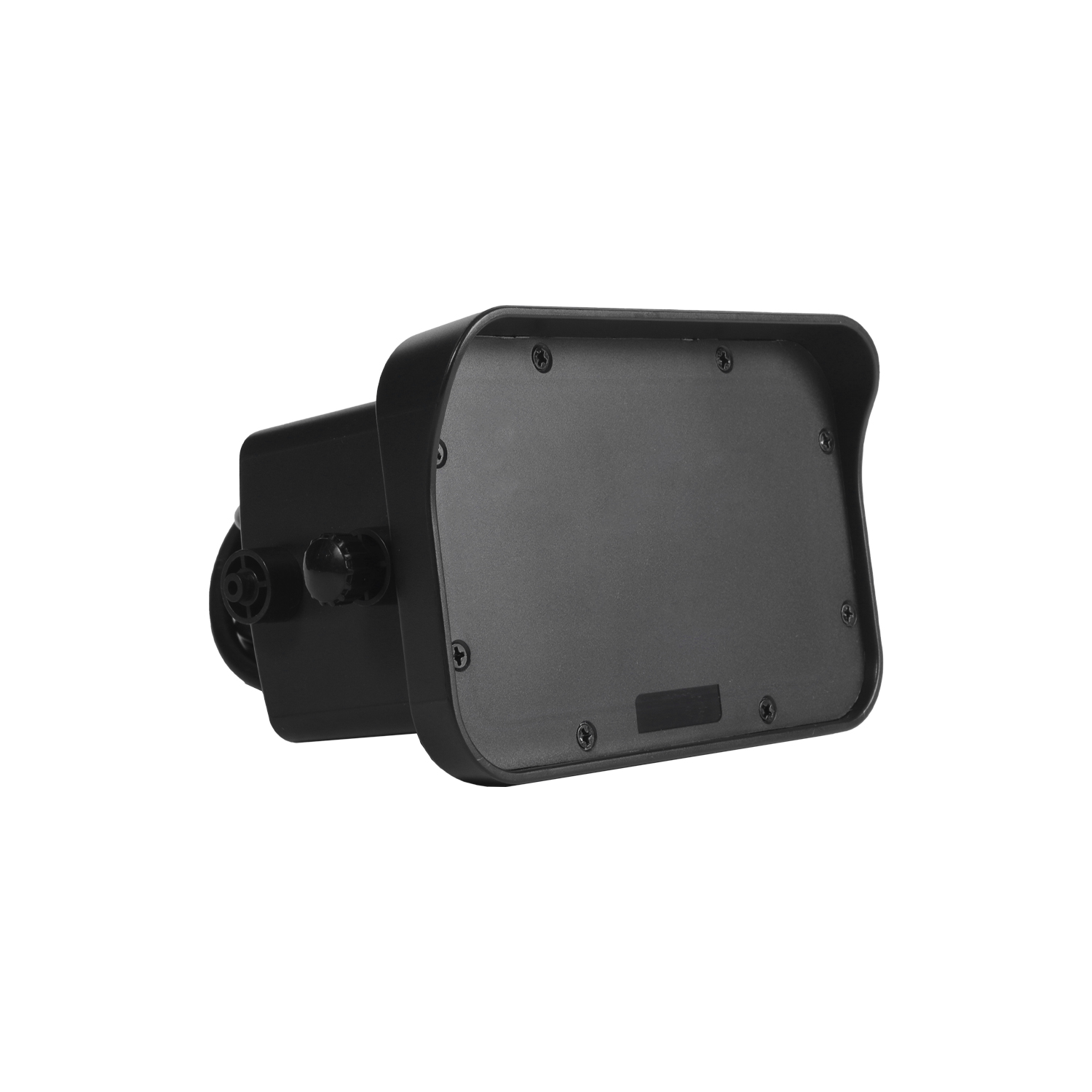

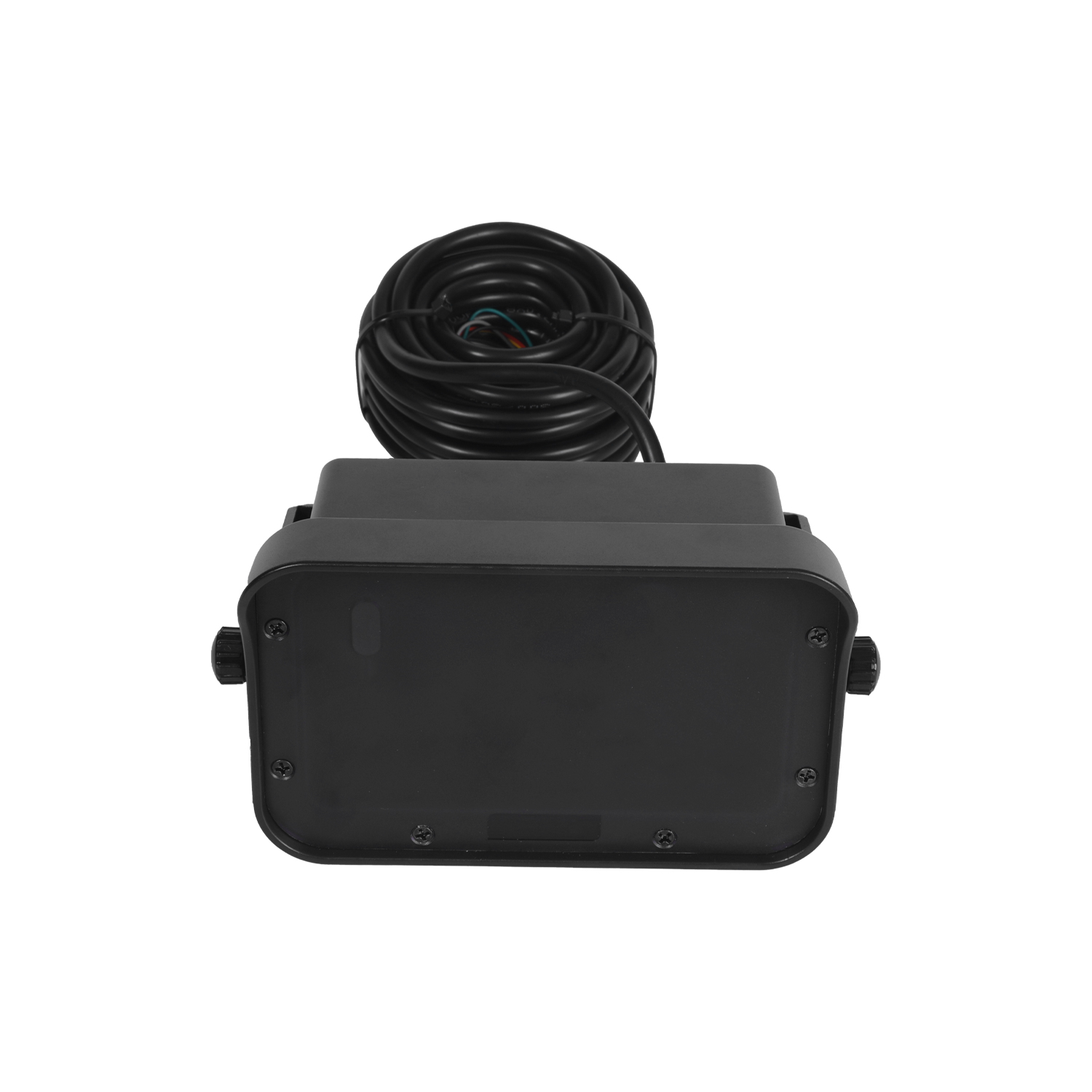

The Appearance And Dimension

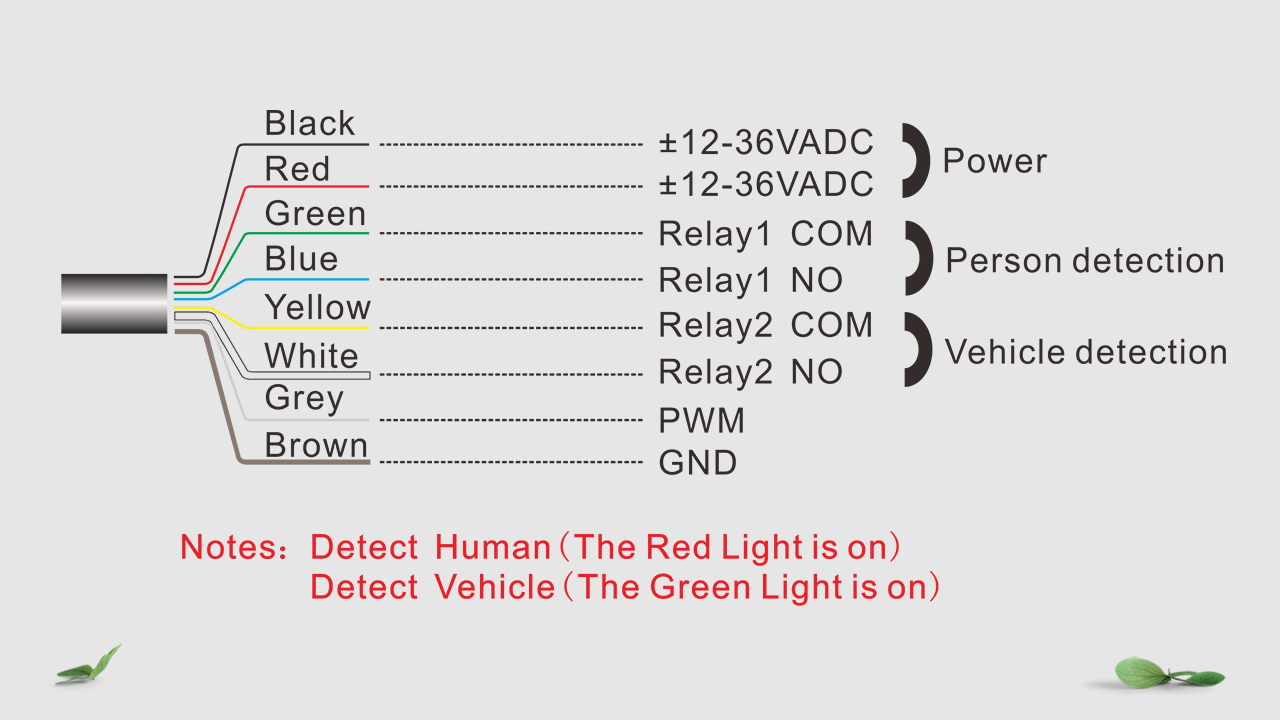

Wiring And Installation

Radar Bluetooth Connection Light



Setting
